Description

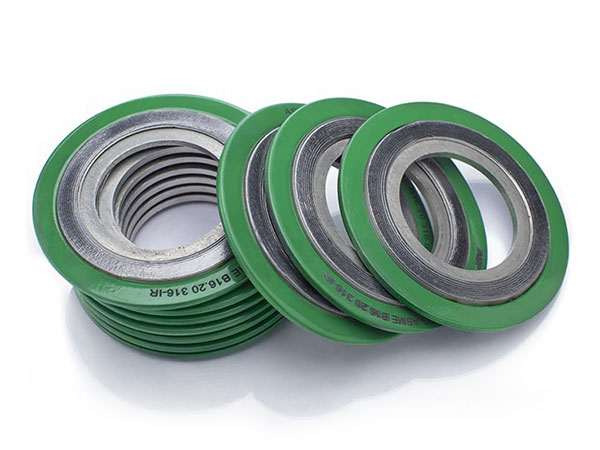

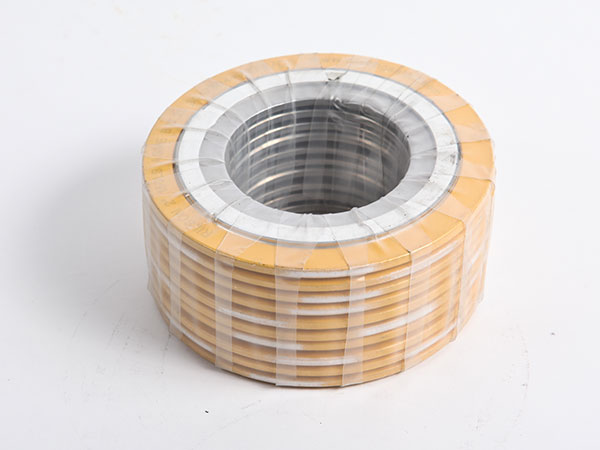

Spiral Wound Gasket consists of a thin metal hoop and non-metallic filler material that is simultaneously wound. The metal hoop is pre-formed in V or W-shaped profile, which allows the gasket to act as a spring between the flanges.

Spiral Wound Gaskets are extremely popular due to the wide variety of available styles and sizes, it is the precision-engineered solution for flange joints, manholes, and other high-temperature, high-pressure applications. We can produce according to ASME, BS, JIS, and EN(DIN) standards or client requests.

Description

Item	Style	Flange	For example
Basic type SWG	GS001	Tongue and Groove	304/PTFE
SWG with inner ring	GS001IR	Male and Female	304 304/FG
SWG with the outer ring	GS001CR	Raised faceFlat face	304/ASB CS

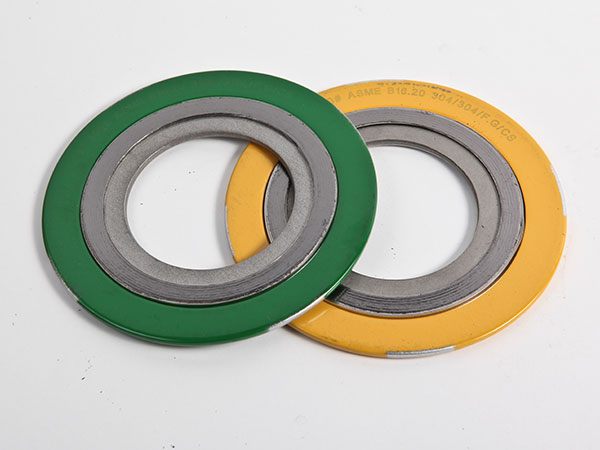

SWG with inner & outer rings	GS001IC		304 304/FG CS
SWG for heat exchanger	GS001H	Heat exchanger	304/FG with 1 bar of DJ
Special shape SWG	GS001S	Special	Oval

Feature

Spiral Wound Gaskets are made in a wide variety of sizes and shapes.
The gasket temperatures from cryogenic up to 1000 °C
High and low-temperature resistance
Quick to install and remove

Application

The spiral wound gasket can be used as the static sealing element of a pipe, valve, pump, thermal exchange, condensing tower, plain hole, manhole of flange, etc.

Petrochemical, chemical, mechanical manufacturer, power station, metallurgy, shipbuilding, medical and pharmaceutical unclear power station, navigation, etc.
