Description

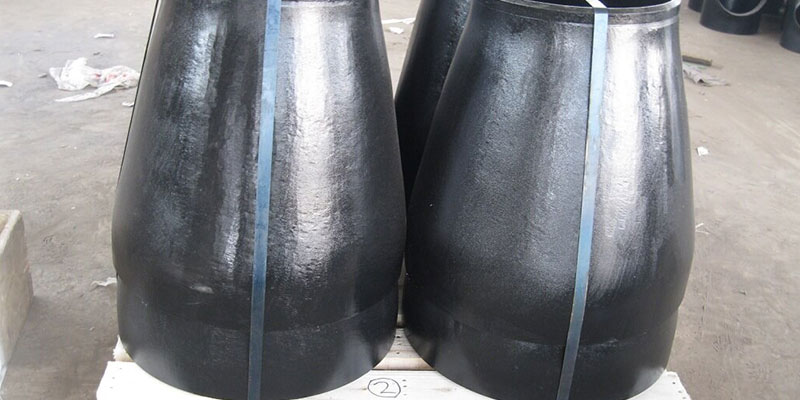

Concentric Reducer, Eccentric Reducer
Carbon Steel Reducer, Stainless Steel Reducer

Size: 1/2” to 80”

Wall Thickness: Schedule 5S, 10S, 20S, S10, S20, S30, STD, 40S, S40, S60, XS, 80S, S80, S100, S120, S140, S160, XXS

It is used for the connection between two different pipe diameters, and is divided into two types of concentric and eccentric heads according to the shape of the pipe.

Name	Reducer, Concentric Reducer, Eccentric Reducer
Size	1/2” to 80”
Wall Thickness	Schedule 5S, 10S, 20S, S10, S20, S30, STD, 40S, S40, S60, XS, 80S, S80, S100, S120, S140, S160, XXS
Standard	ASTM ASME A/SA 403 MSS SP43 & SP75 ANSI B16.9 ANSI B16.28 ASTM A815 ASTM B363 B366 DIN2605 DIN2615 DIN2616 DIN2617
Material	Carbon Steel:ASTM A234 WPB WPC A105 A106 A53 A283-D API5LB A671-CC-70 A515-50 A135-A A179-C,etc
	Stainless Steel:304/304L, 316/316L,316Ti,321,317L,310S,etc
	Alloy Steel:A335-P1,P2 ,P5 ,P11,P12 ,P22,P91,P92,A369-FP1,P2 A250-T1 A209-T1 A213-T2,T9 ,T12 A199-T11,T22,
	Duplex Stainless Steel: S31803(SAF2205),S32750(SAF2507),S31500(3RE60)
Surface	Black paint,bright paint,Galvanized,Rust-proof Oil etc

Carbon Steel Pipe Fitting – Concentric & Eccentric Reducers
Standard			Extra Strong
Nominal Pipe Size	Length	Weight in Pounds	Nominal Pipe Size	Length	Weight in Pounds
1 1/4 x 1/2	2	0.42	1 1/4 x 1/2	2	0.53
1 x 3/4	2	0.36	1 x 3/4	2	0.43
1 x 1/2	2	0.36	1 x 1/2	2	0.42
3/4 x 1 1/2	1	0.21	3/4 x 1 1/2	1.5	0.25
1 1/2 x 1 1/4	2.5	0.65	1 1/2 x 1 1/4	2.5	0.78
1 1/2 x 1	2.5	0.57	1 1/2 x 1	2.5	0.72
1 1/2 x 3/4	2.5	0.56	1 1/2 x 3/4	2.5	0.65
1 1/2 x 1/2	2.5	0.56	1 1/4 x 1/2	2.5	0.65
1 1/4 x 1	2	0.48	1 1/4 x 1	2	0.57
1 1/4 x 3/4	2	0.42	1 1/4 x 3/4	2	0.53
1 1/4 x 1/2	2	0.42	2 1/2 x 2	3.5	2.1
2 1/2 x 2	3.5	1.6	2 1/2 x 1 1/2	3.5	1.9
2 1/2 x 1 1/2	3.5	1.5	2 1/2 x 1 1/4	3.5	1.7
2 1/2 x 1 1/4	3.5	1.4	2 1/2 x 1	3.5	1.5
2 1/2 x 1	3.5	1.3	2 1/2 x 12 x 1 1/2	3	1.2
2 x 1 1/2	3	0.94	2 x 1 1/4	3	1.1
2 x 1 1/4	3	0.88	2 x 1	3	1
2 x 1	3	0.81	2 x 3/4	3	0.94
2 x 3/4	3	0.74	3 1/2 x 3	4	4.1
3 1/2 x 3	4	2.8	3 1/2 x 2 1/2	4	3.7
3 1/2 x 2 1/2	4	2.7	3 1/2 x 2	4	3.5
3 1/2 x 2	4	2.6	3 1/2 x 1 1/2	4	3.3
3 1/2 x 1 1/2	4	2.6	3 1/2 x 1 1/2	4	3.3
3 1/2 x 1 1/4	4	2.5	3 1/2 x 1 1/4	4	3.3
3 x 2 1/2	3.5	2.2	3 x 2 1/2	3.5	2.8
3 x 2	3.5	2	3 x 2	3.5	2.6
3 x 1 1/2	3.5	1.9	3 x 1 1/2	3.5	2.4
3 x 1 1/4	3.5	1.8	3 x 1 1/4	3.5	2.3
3 x 1	3.5	1.7	3 x 1	3.5	2.2
4 x 3 1/2	4	3.5	4 x 3 1/2	4	4.9
4 x 3	4	3.3	4 x 3	4	4.7
4 x 2 1/2	4	3.2	4 x 2 1/2	4	4.6
4 x 2	4	3.1	4 x 2	4	4.3
4 x 1 1/2	4	3	4 x 1 1/2	4	4.2
4 x 1 1/4	4	3	4 x 1 1/4	4	4.1
4 x 1	4	2.8	4 x 1	4	4
5 x 4	5	5.5	5 x 4	5	7.5
5 x 3 1/2	5	5.3	5 x 3 1/2	5	6.9
5 x 3	5	5.1	5 x 3	5	6.3
5 x 2 1/2	5	4.8	5 x 2 1/2	5	6.1
5 x 2	5	4.7	5 x 2	5	6
6 x 5	5.5	7.6	6 x 5	5.5	11.5
6 x 4	5.5	7.4	6 x 4	5.5	10.7
6 x 3 1/2	5.5	7.1	6 x 3 1/2	5.5	10
6 x 3	5.5	6.9	6 x 3	5.5	9.7
6 x 2 1/2	5.5	6.6	6 x 2 1/2	5.5	9.1
6 x 2	5.5	6.5	6 x 2	5.5	8.6
8 x 6	6	12.3	8 x 6	6	18.8
8 x 5	6	11.5	8 x 5	6	17.6
8 x 4	6	10.8	8 x 4	6	17
8 x 3 1/2	6	10.6	8 x 3 1/2	6	15.9
8 x 3	6	9.8	8 x 3	6	15
10 x 8	7	22.1	10 x 8	8	29.4
10 x 6	7	20.7	10 x 6	7	28.3
10 x 5	7	19.5	10 x 5	7	26.9
10 x 4	7	18.4	10 x 4	7	24.2
12 x 10	8	32.4	12 x 10	8	41.5
12 x 8	8	30.5	12 x 8	8	38.6
12 x 6	8	29.5	12 x 6	8	37.4
12 x 5	8	27.8	12 x 5	8	36.3
12 x 4	8	26.2	12 x 4	8	34.7
14 x 12	13	63.1	14 x 12	13	81
14 x 10	13	61.4	14 x 10	13	76.7
14 x 8	13	60	14 x 8	13	74.6
14 x 6	13	59.2	14 x 6	13	72.3
16 x 14	14	75.4	16 x 14	14	98
16 x 12	14	72.7	16 x 12	14	95.8
16 x 10	14	71.1	16 x 10	14	93.3
16 x 8	14	69.4	16 x 8	14	91.1
16 x 6	14	67.4	16 x 6	14	89.8
18 x 16	15	87.3	18 x 16	15	118
18 x 14	15	86	18 x 14	15	117
18 x 12	15	84.8	18 x 12	15	115
18 x 10	15	83.7	18 x 10	15	113
20 x 18	20	123	20 x 18	20	162
20 x 16	20	121	20 x 16	20	159
20 x 14	20	119	20 x 14	20	157
20 x 12	20	118	20 x 12	20	155
20 x 10	20	117	20 x 10	20	152
24 x 20	20	156	24 x 20	20	201
24 x 18	20	153	24 x 18	20	197
24 x 16	20	150	24 x 16	20	194
24 x 14	20	147	30 x 24	24	315
24 x 12	20	144	30 x 20	24	315
24 x 10	20	141	30 x 18	24	315
30 x 24	24	315	36 x 30	24	379
30 x 20	24	315	36 x 24	24	379
30 x 18	24	315	36 x 20	24	379
36 x 30	24	379	42 x 36	24	443
36 x 24	24	379	42 x 30	24	443
36 x 20	24	379	42 x 24	24	443
42 x 36	24	443	48 x 42	28	525
42 x 30	24	443	48 x 36	28	525
42 x 24	24	443	48 x 30	28	525
48 x 42	28	525
48 x 36	28	525
48 x 30	28	525
